Ladder
Cable Tray provides maximum ventilation and load carrying strength.
Available in widths from 6 to 36 in., nominal depths of 3, 4 and 6 in.,
rung spacings from 6 to 18 in. and in aluminum, steel and stainless steel
materials.
Solid
Bottom Cable Tray offers maximum protection for wires. Available
in widths from 4 to 36 in., nominal depths of 3, 4 and 6 in. and in aluminum,
steel and stainless steel materials.
Trough
Cable Tray provides ventilation and closely spaced "rungs"
(1-in. centers). Available in widths from 4 to 36 in., nominal depths of
3, 4 and 6 in. and in aluminum, steel and stainless steel materials.
Channel
Cable Tray carries a single cable or multiple light weight control
wires and piping. Available in 4- and 6- in. widths, 1-º in. depth.
and in aluminum, steel and stainless steel materials.

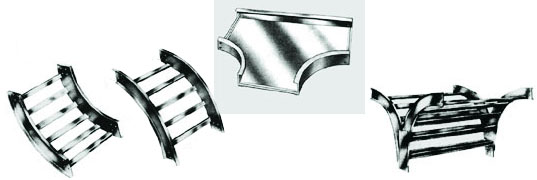

For a completely integrated system, these GLOBETRAY® fittings provide:
electrical continuity, continuous support, positive radius control, protection
against physical damage, ease of installation, engineered performance and
factory-controlled quality components. Fittings have a maximum rung spacing
of 9 in. o.c. measured at the center line of the fitting.
Cable
Tray Covers provide shelter from sunlight and accumulation of
dirt. They not only guard against damage to and accidental contact with
cables but also help to isolate cables from fire and radio frequency interference.
Additional
accessories are available for this product line to maintain system continuity.
Please consult the GS Metals catalog or contact us for ordering information.
|
